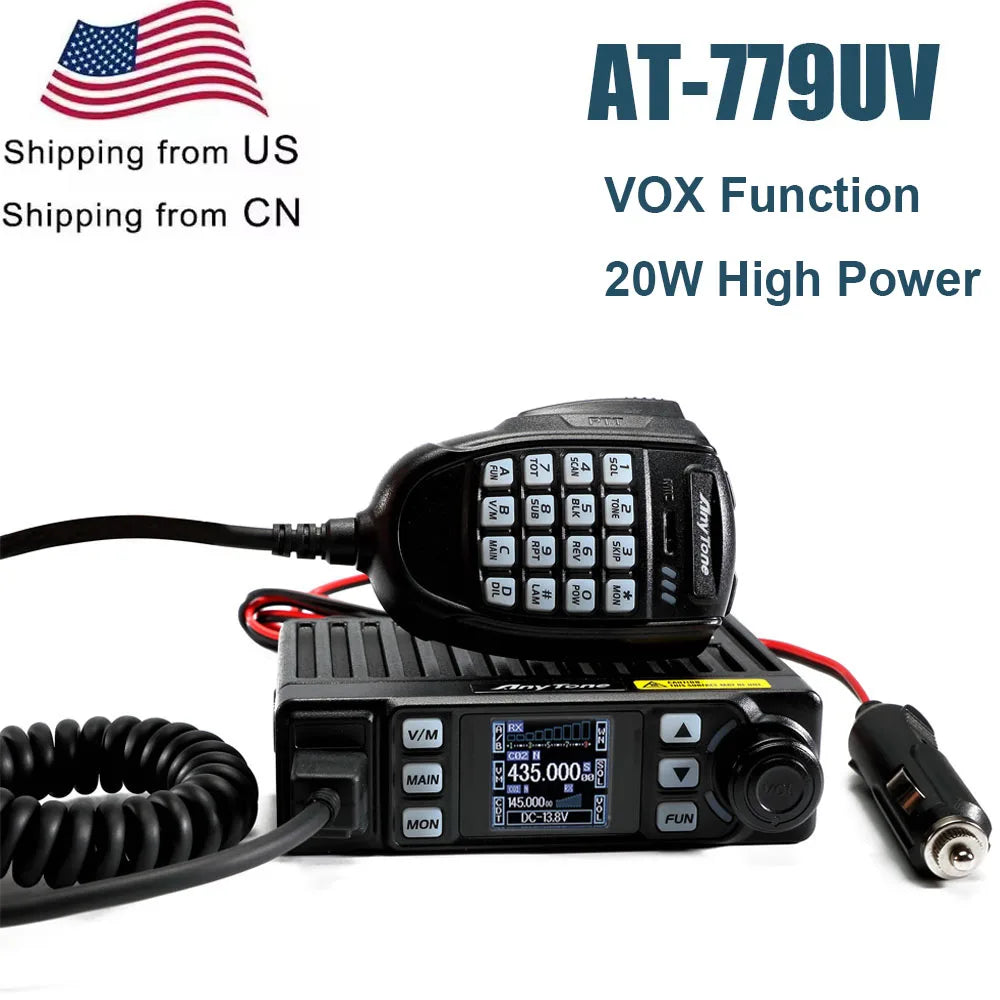

New AnyTone AT-779UV 20W Mini Car Walkie Talkie 500 Channels VOX VHF UHF Dual Band Amateur Radio
New AnyTone AT-779UV 20W Mini Car Walkie Talkie 500 Channels VOX VHF UHF Dual Band Amateur Radio
Couldn't load pickup availability
SPECIFICATIONS
Battery Capacity(mAh): -
Battery Included: No
Brand Name: AnyTone
Certification: CE,FCC
Frequency Range: 144-148MHz,430 - 440 MHz
High-concerned chemical: None
Is_Display: Yes
Material: Plastic
Maximum Range: 5km-10km
Model Number: AT-779UV
Origin: Mainland China
Output Power(w): 5w-10w
Storage Channel: 500
Use: Motor vehicle
Walkie Talkie Type: Car
Waterproof / Water-Resistant: IP55
New AnyTone AT-779UV 20W Mini Car Walkie Talkie 500 Channels VOX VHF UHF Dual Band Amateur Radio
Features:
-1.4" TFT screen
- CTCSS,DCS,DTMF,2Tone,5Tone setting for each single channel
- 11 groups fixed scrambler code plus self define scrambler code
- LCD brightness control
- Main unit and microphone key lock function
- Compander function
- Tone Pulse frequency
- Mini size with dimensions 4.72ft*3.94ft*1.34ft

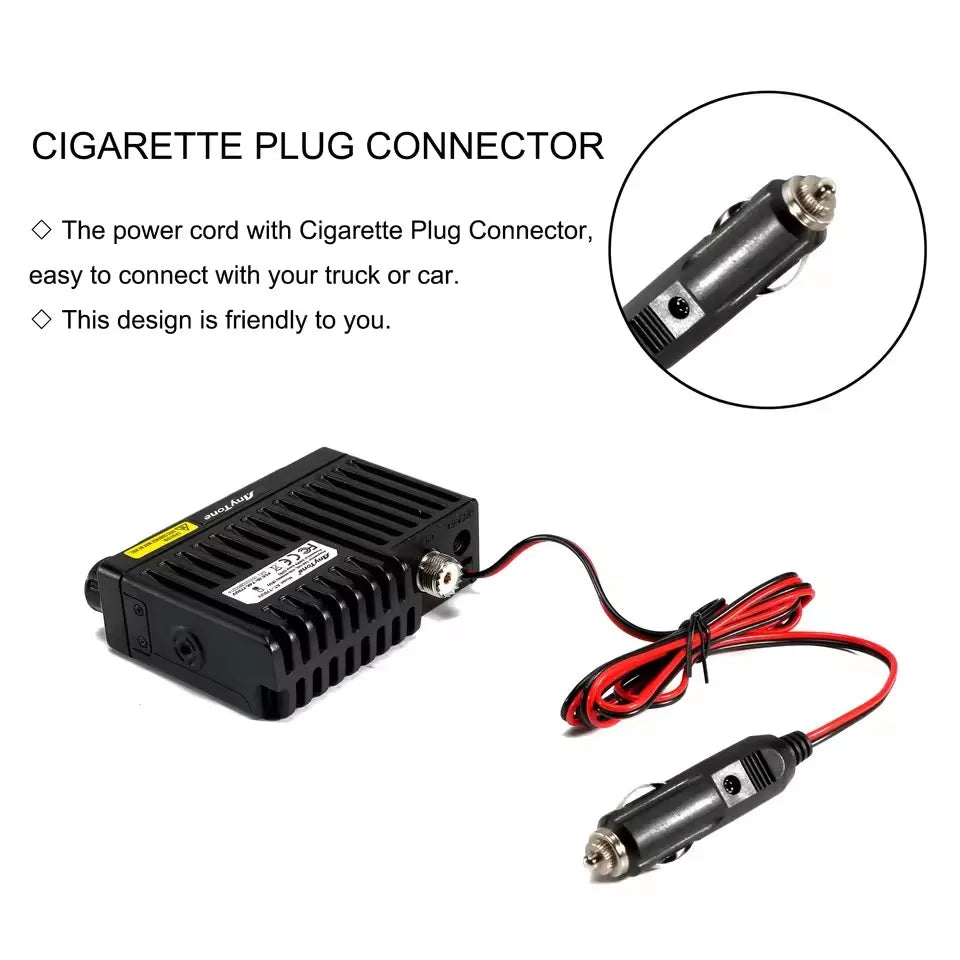

-12V power supply from Private car cigarette lighter directly
-Frequency Step:2.5/5/6.25/10/12.5/15/20/25/30/50KHz
-Squelch Level Setting
-Scan
-VHF:136-174MHz, UHF:400-470MHz (need Program)
-Carrier/CTCSS/DCS/5TONE/2TONE/DTMF
Specifications:
General | ||
Frequency Range |
VHF:144-148MHz, UHF:430-440MHz, FM:86.7-108MHz (RX) |
|
Number of Channels |
500 |
|
Channel Spacing |
25KHz(Wide Band), 12.5KHz (Narrow Band) |
|
Phrase-lock Step |
2.5KHz,5Khz,6.25KHz,10KHz.12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz |
|
Operating Voltage |
DC13.8V±15% |
|
Squelch Method |
Carrier/CTCSS/DCS/5tone/2tone/DTMF |
|
Frequency Stability |
±2.5ppm |
|
Operating Temperature |
-20℃~+60℃ |
|
Dimensions(W*D*H) |
124 (W) x 101(D) x 36 (H)mm |
|
Weight |
about 0.5Kg |
|
Transmitter Part | ||
Wide Band |
Narrow Band |
|
Power Output |
20W/10W/5W |
|
Modulation |
16KΦF3E |
11KΦF3E |
Adjacent Channel Power |
≥70dB |
≥60dB |
Hum & Noise |
≥40dB |
≥36dB |
Spurious Emission |
≥60dB |
≥60dB |
Audio Response |
+1~-3dB (0.3~3KHz) |
+1~-3dB (0.3~3KHz) |
Audio Distortion |
≤5% |
|
Receiver Part | ||
Wide Band |
Narrow Band |
|
Sensitivity (12dBm SINDA) |
≤0.25μV |
≤0.35μV |
Adjacent Channel Selectivity |
≥60dB |
≥60dB |
Intermodulation |
≥60dB |
≥60dB |
Spurious response |
≥60dB |
≥60dB |
Audio Response |
+1~-3dB (0.3~3KHz) |
+1~-3dB (0.3~3KHz) |
Hum & Noise |
≥45dB |
≥40dB |
Audio distortion |
≤5% |
|
Audio power output |
>2W@16Ω |
|
